- We are producing wide range design of water tanks from 30l to 2000l for heat pump, solar water and electric boiler.

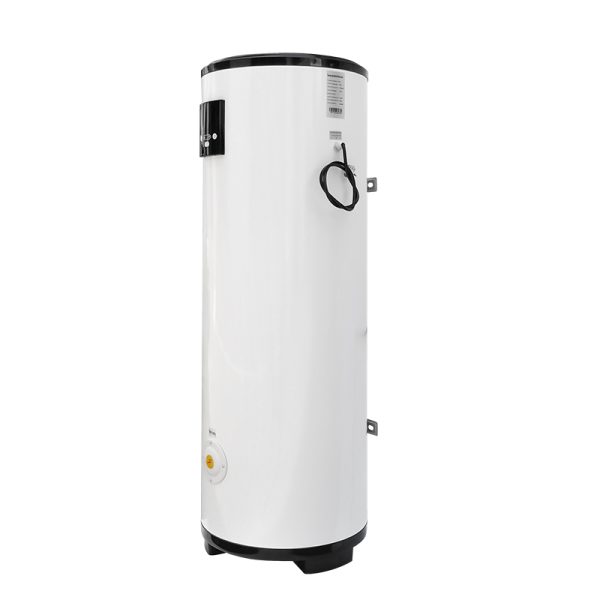

This design of water heater is combined electric heating with controller display, and also could connect to heat pump or solar hot water. So, it is multifunction water heater unit.
| Model | EHWT100L | EHWT200L | EHWT250L | EHWT300L | EHWT400L | EHWT500L | EHWT600L | EHWT800L | EHWT1000L |
| Nominal capaicty | 100L | 200L | 250L | 300L | 400L | 500L | 600 | 800 | 1000 |
| Outet tank diamter (mm) | Φ470 | Φ520 | Φ560 | Φ600 | Φ700 | Φ700 | 700 | 900 | 900 |
| Inner tank diamater(mm) | Φ370 | Φ420 | Φ470 | Φ500 | Φ600 | Φ600 | 600 | 800 | 800 |
| Tank Height (mm) | 1115 | 1545 | 1625 | 1595 | 1625 | 1915 | 2100 | 2050 | 2200 |
| Inner tank material | stainless steel SUS304 or SUS316L | ||||||||
| Inner tank thickness | 1.2mm | 1.2mm | 1.5mm | 1.5mm | 1.5mm | 1.8mm | 2.0mm | 3.0mm | 3.0mm |
| Outer shell material | Glavalized steel with white/sliver-grey color painting, thickness 0.5mm | ||||||||
| Connections | Factory standard: water inlet &outlet G3/4″, air vent hole G3/4″, temp. sensor hole G1/2″, water drain G1/2″male; or customerized | ||||||||
| E-heater | G1 1/4″ screw thread E-heater 1.5kW/220~230V/50Hz | ||||||||
| Controller | LCD display controller | ||||||||
| Working pressure | 0.6MPa | ||||||||
| Max. pressure | 1.0MPa | ||||||||
| Foaming insulation | Cyclopentane combination polyether foaming, thickness 50mm | ||||||||
| Package size | 535/535/1170 | 535/535/1600 | 630/630/1680 | 670/670/1660 | 780/780/1680 | 780/780/1970 | 780/785/2160 | 985/985/2120 | 985/985/2180 |
*The above models are factory standard design models, it could be customerized design.
**To get more detail informations for the products, please kindly contact us.
- Certificates: we have got CE, PED & ErP
- Our Production
We are processing 2 production lines. And we welcome customers to visit us for further cooperation negotiation.
